ESL

ESL

세상의 모든 비즈니스, ESL과 함께 더욱 편리해집니다.

ESL(Electronic Shelf Label)은 다양한 정보를 E-Paper 디스플레이에 표시하는 시스템으로,

바뀐 정보를 입력하면 통신 네트워크를 통해 실시간 업데이트됩니다.
오늘날 ESL은 리테일부터 물류, 스마트 팩토리, 의류, 의료 등 다양한 영역에 적용이 가능합니다.

솔루엠은 설계부터 생산까지 ESL Total Value Chain을 갖춘 유일한 업체로 고객 맞춤형 하드웨어와 솔루션을 동시에 제공합니다.
편하고, 빠르게, 오래도록 지속될 새로운 비즈니스를 경험해보세요.
DIMENSION ACTIVE DISPLAY AREA RESOLUTION (Pixel) PIXEL DENSITY PIXEL COLORS

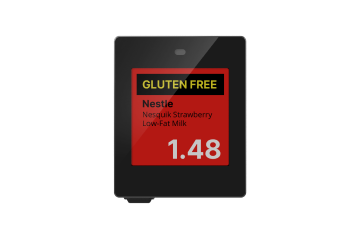

solum esl NEWTON PRO 1.6 inch (V) 36.7 x 44.9 x 10.45 mm /
1.45 x 1.77 x 0.41 inch 		27.0 x 27.0mm /
1.06 x 1.06 inch 		200 x 200 188 dpi BWRY
solum esl NEWTON PRO 1.6 inch (H) 44.9 x 36.7 x 10.45 mm /
1.77 x 1.45 x 0.41 inch 		27.0 x 27.0mm /
1.06 x 1.06 inch 		200 x 200 188 dpi BWRY
solum esl NEWTON PRO 2.2 inch 67.0 x 37.4 x 10.45 mm /
2.64 x 1.47 x 0.41 inch 		48.1 x 26.0mm /
1.89 x 1.02 inch 		296 x 160 156 dpi BWRY

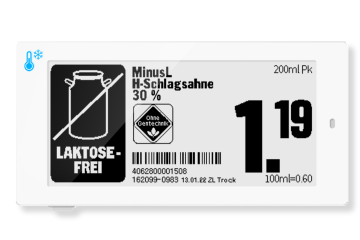

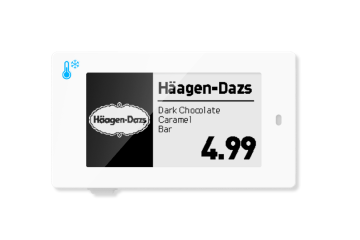

solum esl NEWTON PRO FREEZER 2.2 inch 67.0 x 37.4 x 10.45 mm /
2.64 x 1.47 x 0.41 inch 		48.1 x 26.0mm /
1.89 x 1.02 inch 		296 x 160 156 dpi BW
solum esl NEWTON PRO 2.6 inch 79.2 x 42.5 x 10.45 mm /
3.12 x 1.67 x 0.41 inch 		60.0 x 30.7mm /
2.37 x 1.21 inch 		360 x 184 152 dpi BWRY

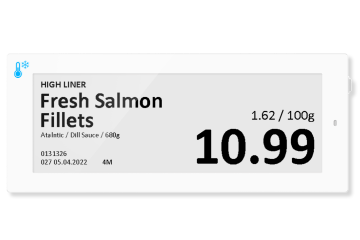

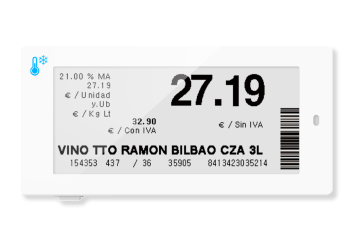

solum esl NEWTON PRO FREEZER 2.6 inch 79.2 x 42.5 x 10.45 mm /
3.12 x 1.67 x 0.41 inch 		60.0 x 30.7mm /
2.37 x 1.21 inch 		360 x 184 152 dpi BW

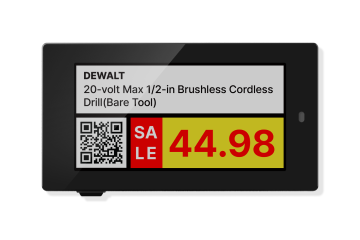

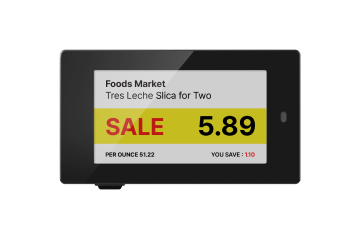

solum esl NEWTON PRO 2.7 inch 76.0 x 49.5 x 10.5 mm /
2.99 x 1.95 x 0.41 inch 		57.3 x 38.2mm /
2.25 x 1.50 inch 		300 x 200 133 dpi BWRY
solum esl NEWTON PRO 2.9 inch 85.9 x 41.3 x 10.45 mm /
3.38 x 1.62 x 0.41 inch 		67.6 x 29.6 mm /
2.66 x 1.16 inch 		384 x 168 144 dpi BWRY

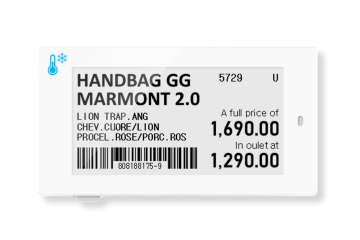

solum esl NEWTON PRO FREEZER 2.9 inch 85.9 x 41.3 x 10.45 mm /
3.38 x 1.62 x 0.41 inch 		67.6 x 29.6 mm /
2.66 x 1.16 inch 		384 x 168 144 dpi BW

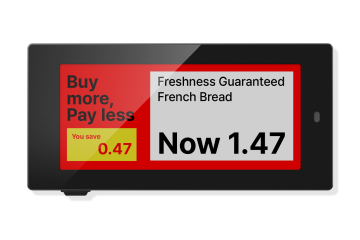

solum esl NEWTON PRO 3.5 inch 100.2 x 49.6 x 10.45 mm /
3.94 x 1.95 x 0.41 inch 		81.0 x 38.0 mm/
3.19 x 1.50 inch 		384 x 180 120 dpi BWRY
solum esl NEWTON PRO FREEZER 3.5 inch 100.2 x 49.6 x 10.45 mm /
3.94 x 1.95 x 0.41 inch 		81.0 x 38.0 mm/
3.19 x 1.50 inch 		384 x 180 120 dpi BW
solum esl NEWTON PRO 4.2 inch 98.1 x 83.7 x 12.45 mm /
3.86 x 3.29 x 0.49 inch 		84.8 x 63.6mm /
3.34 x 2.50 inch 		400 x 300 120 dpi BWRY
DIMENSION ACTIVE DISPLAY AREA RESOLUTION (Pixel) PIXEL DENSITY PIXEL COLORS

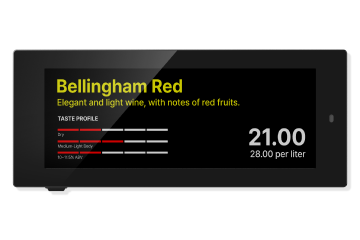

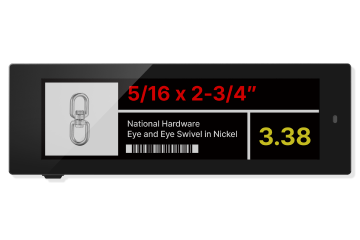

solum esl NEWTON PRO 4.3 inch 130.2 x 42.3 x 13.0 mm /
5.13 x 1.67 x 0.51 inch 		105.4 x 30.7 mm /
4.15 x 1.21 inch 		522 x 152 125 dpi BWRY
solum esl NEWTON PRO 4.5 inch 128.6 x 53.0 x 13.0 mm /
5.06 x 2.09 x 0.51 inch 		104.2 x 38.2 mm /
4.10 x 1.50 inch 		480 x 176 117 dpi BWRY

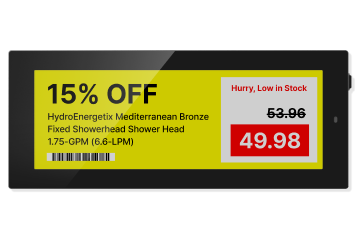

solum esl NEWTON PRO 5.8 inch 164.0 x 66.8 x 14.3 mm /
6.45 x 2.63 x 0.56 inch 		139.0 x 47.7 mm /
5.47 x 1.88 inch 		792 x 272 144 dpi BWRY
solum esl NEWTON PRO FREEZER 5.8 inch 164.0 x 66.8 x 14.3 mm /
6.45 x 2.63 x 0.56 inch 		139.0 x 47.7 mm /
5.47 x 1.88 inch 		792 x 272 144 dpi BW

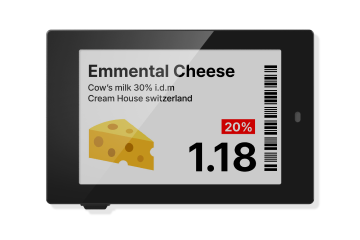

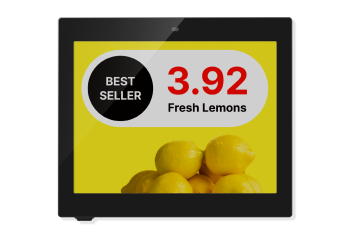

solum esl NEWTON PRO 6.0 inch 133.0 x 109.0 x 14.30 mm /
5.23 x 4.29 x 0.56 inch 		114.9 x 85.8 mm /
4.52 x 3.38 inch 		600 x 448 132 dpi BWRY

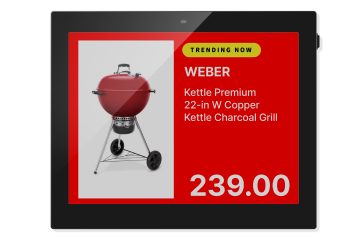

solum esl NEWTON PRO 6.1 inch 133.20 x 109.96 x 14.90 mm /
5.24 x 4.33 x 0.58 inch 		118.78 x 88.22 mm /
4.68 x 3.47 inch 		648 x 480 138 dpi BWRY

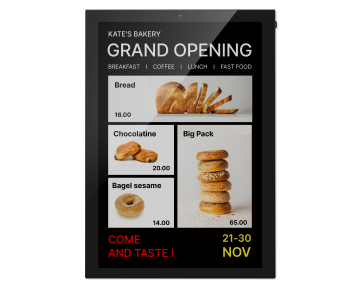

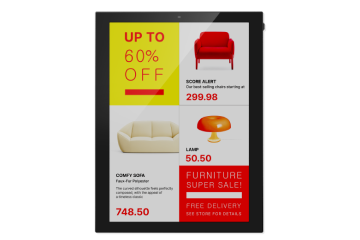

solum esl NEWTON PRO 7.5 inch 125.0 x 182.9 x 14.85 mm /
4.92 x 7.2 x 0.58 inch 		97.9 x 163.2 mm /
3.8 x 6.4 inch 		480 x 800 126 dpi BWRY

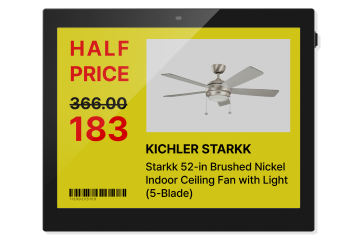

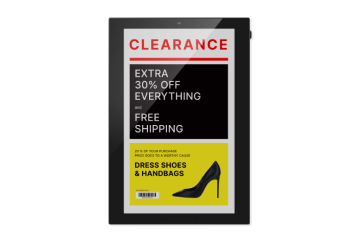

solum esl NEWTON PRO 9.7 inch 170.2 x 223.6 x 14.85 mm /
6.70 x 8.80 x 0.58 inch 		141.12 x 201.6 mm /
5.56 x 7.94 inch 		672 x 960 121 dpi BWRY

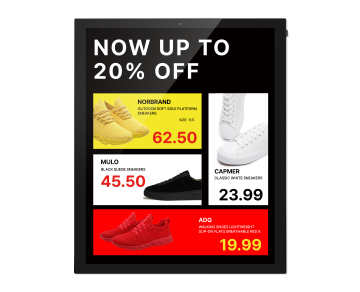

solum esl NEWTON PRO 11.6 inch 192.0 x 269.1 x 15.35 mm /
7.50 x 10.6 x 0.60 inch 		163.0 x 244.5 mm /
6.42 x 9.63 inch 		640 x 960 100 dpi BWRY
solum esl NEWTON PRO 12.2 inch 216.2 x 260.0 x 15.35 mm /
8.51 x 10.23 x 0.60 inch 		190.1 x 237.6 mm /
7.48 x 9.35 inch 		768 x 960 102dpi BWRY
